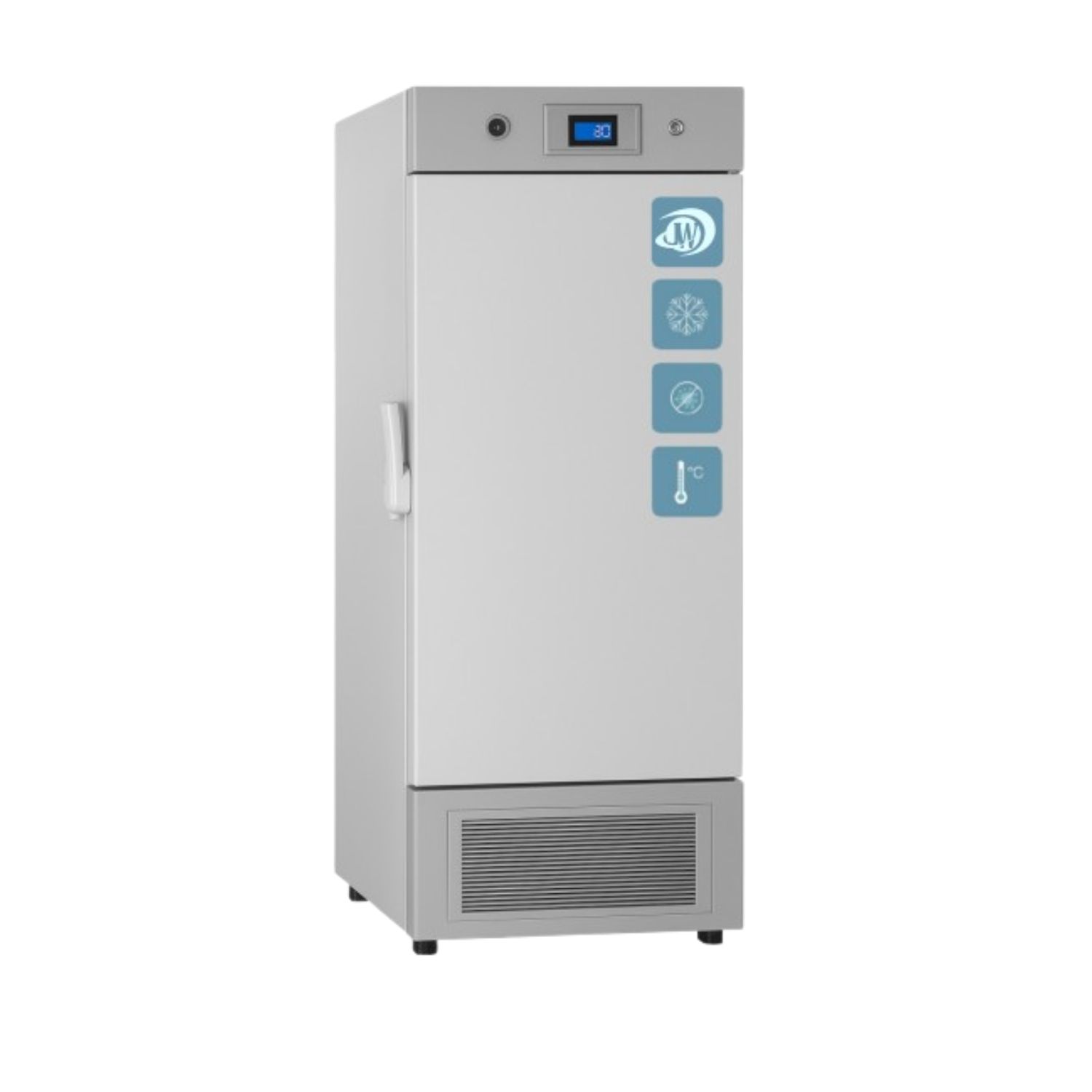

Ultra Low Vertical ULT Freezer (-86ºC)

Ultra Low Vertical ULT Freezer (-86ºC)
Item Code Capacity External Internal No. of
(Ltr.) (Dimension) (Dimension) Shelves
RE-ULT-437 437 790x1100x1950 460x720x1310 3
RE- 567 920x1100x1950 590x720x1310 3
RE- 707 1070x1100x1950 740x720x1310 3
ULT-567
ULT-707
The Ultra Low Vertical ULT Freezer is specially designed for
long-term storage of biological samples, vaccines, blood
components, enzymes, viruses, tissues, and other research
materials requiring extreme low temperatures. With advanced
refrigeration technology, powerful insulation, and precise
temperature control, it ensures sample safety and reliability
for laboratories, hospitals, biobanks, and research institutes.
Technical Specifications
Temperature Range: –40°C to –86°C (adjustable)
Cooling System: Cascade refrigeration with
CFC/HCFC-free refrigerants
Controller: Microprocessor-based digital temperature controller
with large LED/LCD display
Alarm System: Audio-visual alarms for high/low temperature,
power failure, door open, and system error
Construction:
Exterior: Powder-coated steel
Interior: Stainless Steel for hygiene & durability
High-density polyurethane (PUF) insulation (≥120 mm) for maximum
cold retention

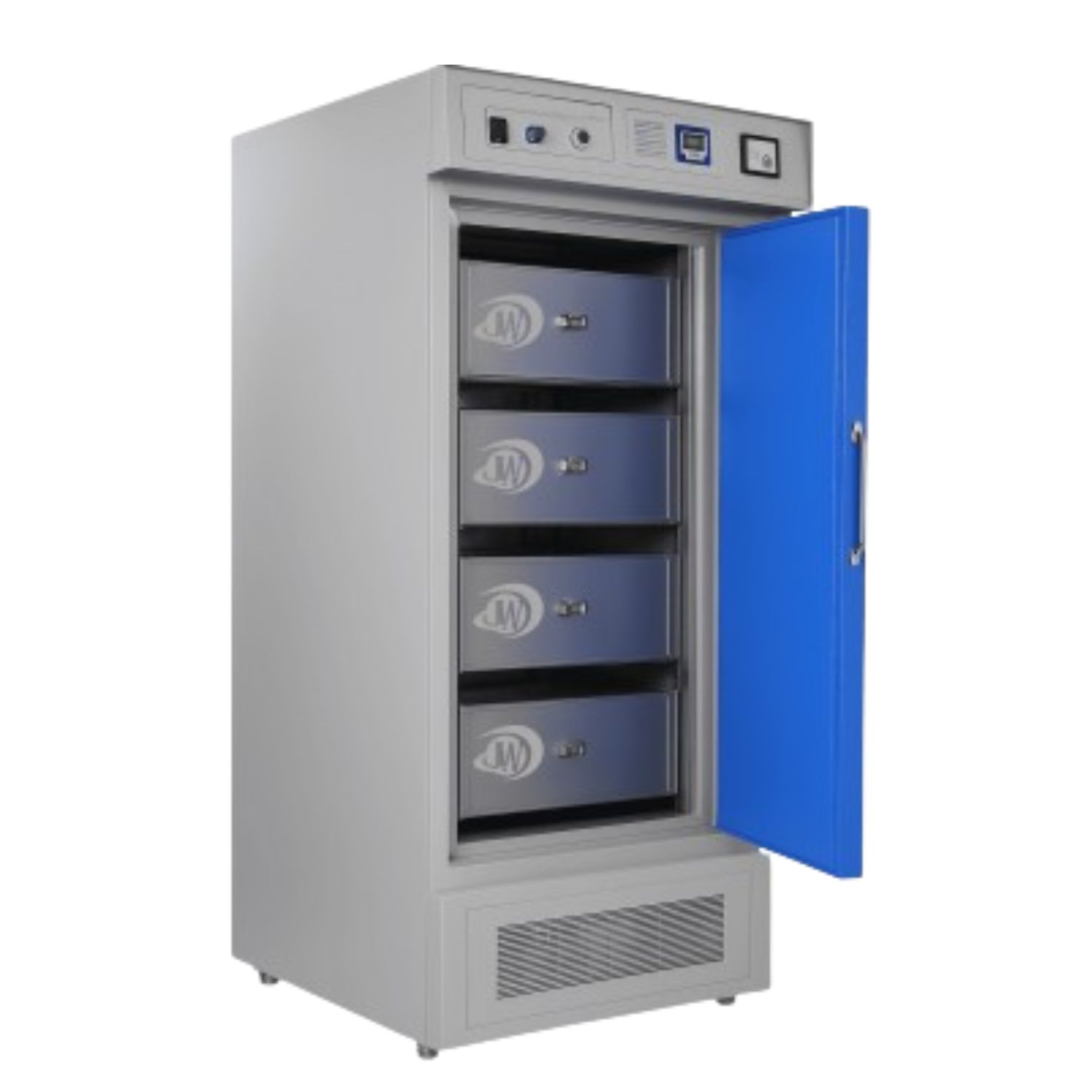

Door System:
Single or double solid doors (vertical) with vacuum-sealed gaskets
Lockable handle with key for safety
Inner doors (compartmentalized) to minimize temperature loss
Capacity Options: Available in various sizes from 100 Liters to 800 Liters (customizable on request)
Mobility: Heavy-duty castor wheels with brakes
Data Logging: USB interface / optional remote monitoring system
Power Supply: 220–240V, 50/60Hz AC (other options available)
Certifications: ISO 9001, ISO 13485, ISO 14001, CE Certified
Key Features
Ultra-low storage at –86°C for maximum sample protection
Cascade refrigeration system with eco-friendly refrigerants
Energy efficient compressor with low noise operation
Multiple safety protections with password-protected controller
Backup options available: CO₂ backup / LN₂ backup (optional)
